Vetter BOY BW articulated wallmounted jib crane

Product to configure
Reference: Vetter BOY BW

Available on backorder

Description

The BOY wall-mounted jib crane is designed for safe and fast handling of workpieces, tools and small parts up to a capacity of 250 kg.

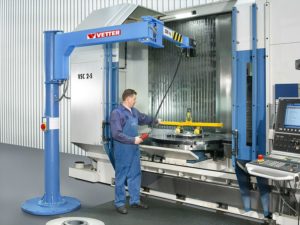

The articulated jib allows you to reach every corner of the work area easily and precisely – the crane turns almost at a corner. Thanks to its compact design, this jib crane achieves maximum lifting height and is ideal for loading machines and machining centres. The BOY jib crane can be adapted to your needs by adjusting the length of the jib individually.

When selecting the mounting, you can choose between mounting on a steel or reinforced concrete column, a reinforced concrete wall or a steel construction.

We supply you with ELECTROLIFT® chain hoists, optionally with foot mounting and without chain hoist pendulum movement for optimal use of limited space and various other accessories.

Technical information
Wall-mounted chain hoist
Type:: BOY BW
Capacity: 63 – 250 kg
Reach: 2.000 – 4.000 mm
Max. rotation angle: 180° (300°/300°)
EN 13001 lifting class: HC2
EN 13001 stability class: S2
Operation: indoors
Rotation: manual
Hoist: chain hoist
